Google’s Jamboard large touch screen is using metal mesh or silver nanowire

October 28, 2016

This week, Google announced its 55 inch touch display named Jamboard. Touch Display Research believes the Jamboard’s touch screen is using metal mesh or silver nanowire.

Touch screen with ITO-replacement is gaining momentum for >50” sizes category.

3M showed 55-inch touch table with metal mesh touch screen.

C3Nano demonstrated 55-inch silver nanowire transparent conductor touch display.

Microsoft has released their 55-inch and 84-inch interactive Surface Hub that can sense both finger touch and active pen.

In the ITO Replacement—Non-ITO Transparent Conductor Technologies, Supply Chain and Market Forecast 2016 Report, sixth edition, Touch Display Research analyzed over 240 companies and research institutes working on advanced transparent conductive (TC) materials. The report provides a detailed analysis of metal mesh, silver nanowire, carbon nano tube (CNT), conductive polymer, graphene, and other technologies. Figure here is the comparison of several transparent conductors.

Figure: ITO replacement comparison chart

ITO replacement compare with TDR2016

Source: Touch Display Research Inc., ITO-Replacement Report, 2016

Touch Display Research forecasts that the ITO-replacement market will reach $13 billion by 2023. The ITO-replacement industry has made good progress in the touch panel and other applications in the past two years. However, not all companies are growing and you need to be very selective. The specifications of over thirty metal mesh suppliers are compared side-by-side in one chart in the Excel database.

Touch Display Research forecast that ITO-replacement will become the major transparent conductor for touch panels after 2021. ITO will be the minor transparent conductor for touch panels.

Thanks for reading,

Dr. Jennifer Colegrove and team

Microsoft keynote about active pen and gesture control at SID 2016

May 26, 2016

At SID 2016 DisplayWeek, Microsoft’s Distinguished Scientist, Mr. Steve Bathiche gave a keynote presentation about the advanced user interface technologies they are working on and his vision for the future.

Steve showed a video of their improvement of the active pen for Surface with less and less latency. Then he said, “Now it feels like real paper; sounds like real paper too!”

Figure: Microsoft’s Steve Bathiche keynote at SID 2016.

Microsft Steve keynote SID 2016

Photo by: Touch Display Research

Active pen input is very useful in education, certain language input, medical, finance, industry applications, and content creation. In the recently published “Active Pen 2016 Report (Second Edition),” Touch Display Research Inc., a market research and consulting firm, analyzes more than thirteen active pen technologies. Touch Display Research forecasts active pen writing module (includes pen sensor, pen and controller IC) revenue will reach $6.1 billion in 2021, from $2.9 billion in 2016.

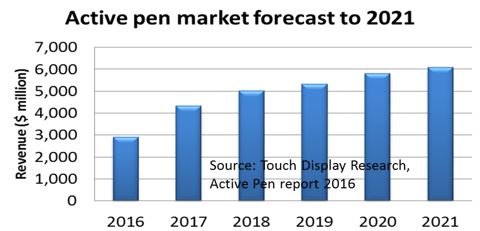

Figure 2. Active pen module market forecast

Active pen market forecast 2016

Source: Touch Display Research, Active pen 2016 report

Thanks for reading,

Dr. Jennifer Colegrove and team
